48V 72V lithium ion Bms Battery Management System Lifepo4 DC Contactor Relay 300A

Name: 48V 72V lithium ion Bms Battery Management System Lifepo4 DC Contactor Relay 300A
Brand: CHARGERY
Price: 69 USD

Quality 48V 72V lithium ion Bms Battery Management System Lifepo4 DC Contactor Relay 300A for sale

Brand Name : CHARGERY

Model Number : DCC-300HB

Certification : CE RoHS

Place of Origin : China

MOQ : 1pcs

Price : USD69-USD89 per unit

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 3-10days

Packaging Details : 10pcs one carton 8Kg

Operation Voltage : 100V

Driving Voltage : 12V

Holding current at 12V : 11mA

Continuous current : 300A

Maximum current for 2 seconds : 500A

Cooling fan : yes

Current Mode : Bi-directional

Size : 105*90*55mm

Weight : 0.7Kg

Contact Now

The 300A DC contactor is designed special work with CHARGERY BMS, the following are some features:

Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays.
The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
Over temperature protection. If internal temperatures over heat, the contactor will shut off.
One Intelligent cooling fans turned on automatically
Approved by CE
12 months warranty

Specification

48V 72V lithium ion Bms Battery Management System Lifepo4 DC Contactor Relay 300A

Two models must be confirmed before purchasing

DCC-300HB-C, used on charge and discharge on common port

DCC-300HB-S, used on charge and discharge on separate port

Installation

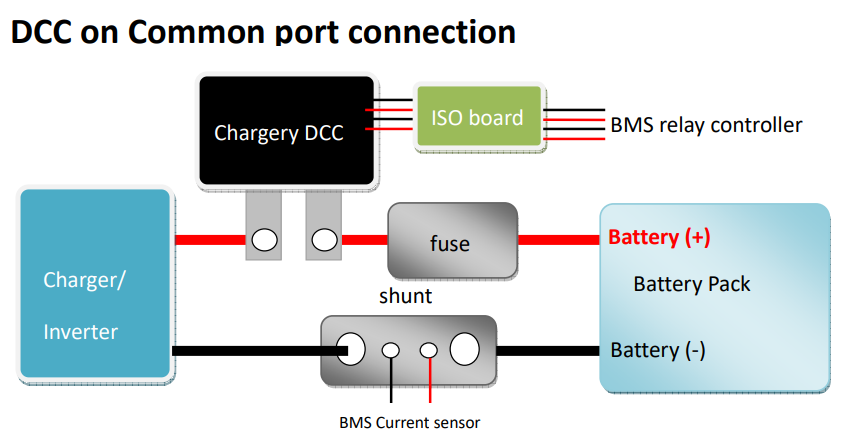

Install DCC on battery positive, the ISO board muse be connected to DCC and BMS, as below,

48V 72V lithium ion Bms Battery Management System Lifepo4 DC Contactor Relay 300A
